FX921V-JS00 4 Stroke Engine FX921V

FX921V-JS00 Fuel-Tank / Fuel-Valve Diagram

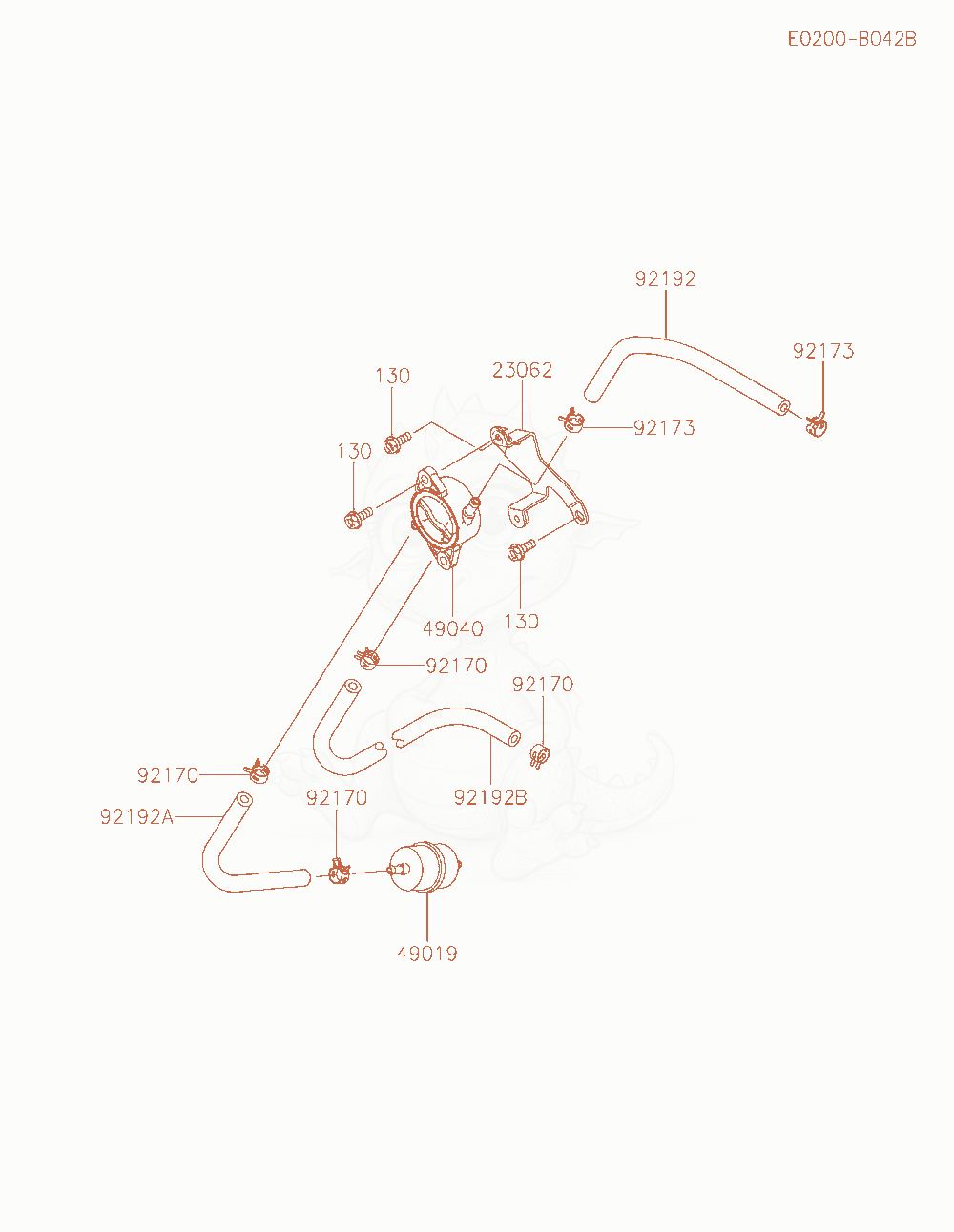

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX921V-JS00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7020
    $5.45
    BRACKET-COMP×1
  • 4901949019-0031
    $7.74
    FILTER-FUEL×1
  • 4904049040-0771Not stocked
    PUMP-FUEL×1
  • 9217092170-2088
    $0.47
    CLAMPReplaced by 92173-1582×4
  • 9217392173-1582Not stocked
    CLAMP,11.8MM×2
  • 9219292192-2375
    $4.72
    TUBE,6.35X12.7X230×1
  • 92192A92192-2388
    $2.39
    TUBE,6.35X12.7X185×1
  • 92192B92192-7077
    $5.68
    TUBE,6.4X12.7X318×1
  • 130130BA0616Not stocked
    BOLT-FLANGED,6X16×4
