FX921V-JS00 4 Stroke Engine FX921V

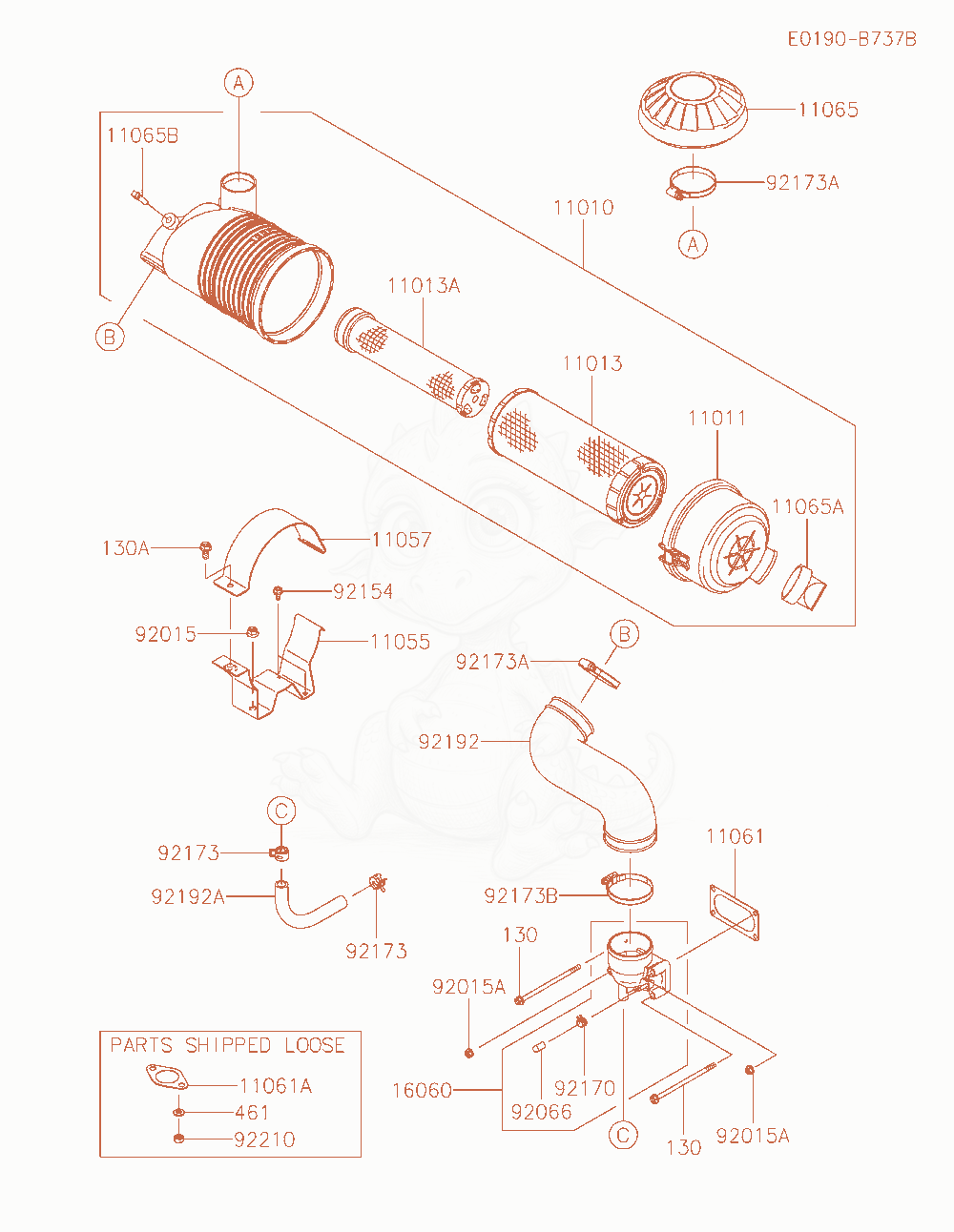

FX921V-JS00 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET×1
- GASKET,PIPE-INTAKE×1
- GASKET,MUFFLER×2
- CAPReplaced by 11065-1384×1
- CAP×1
- CAP×1
- PIPE-INTAKE×1
- NUT,8MM×1
- NUT,FLANGED,6MM×2
- PLUG×1
- BOLT,6X12×2
- CLAMP×1
- CLAMP×2
- CLAMP×2
- CLAMP×1
- TUBE,AIR-FILTERReplaced by 92192-2795×1
- TUBE,12.6X18.6X124.6×1
- NUT,M8×4
- BOLT-FLANGED,6X120×2
- BOLT-FLANGED,8X16×1
- WASHER-SPRING,8MM×4
