FS481V-AS30 4 Stroke Engine FS481V

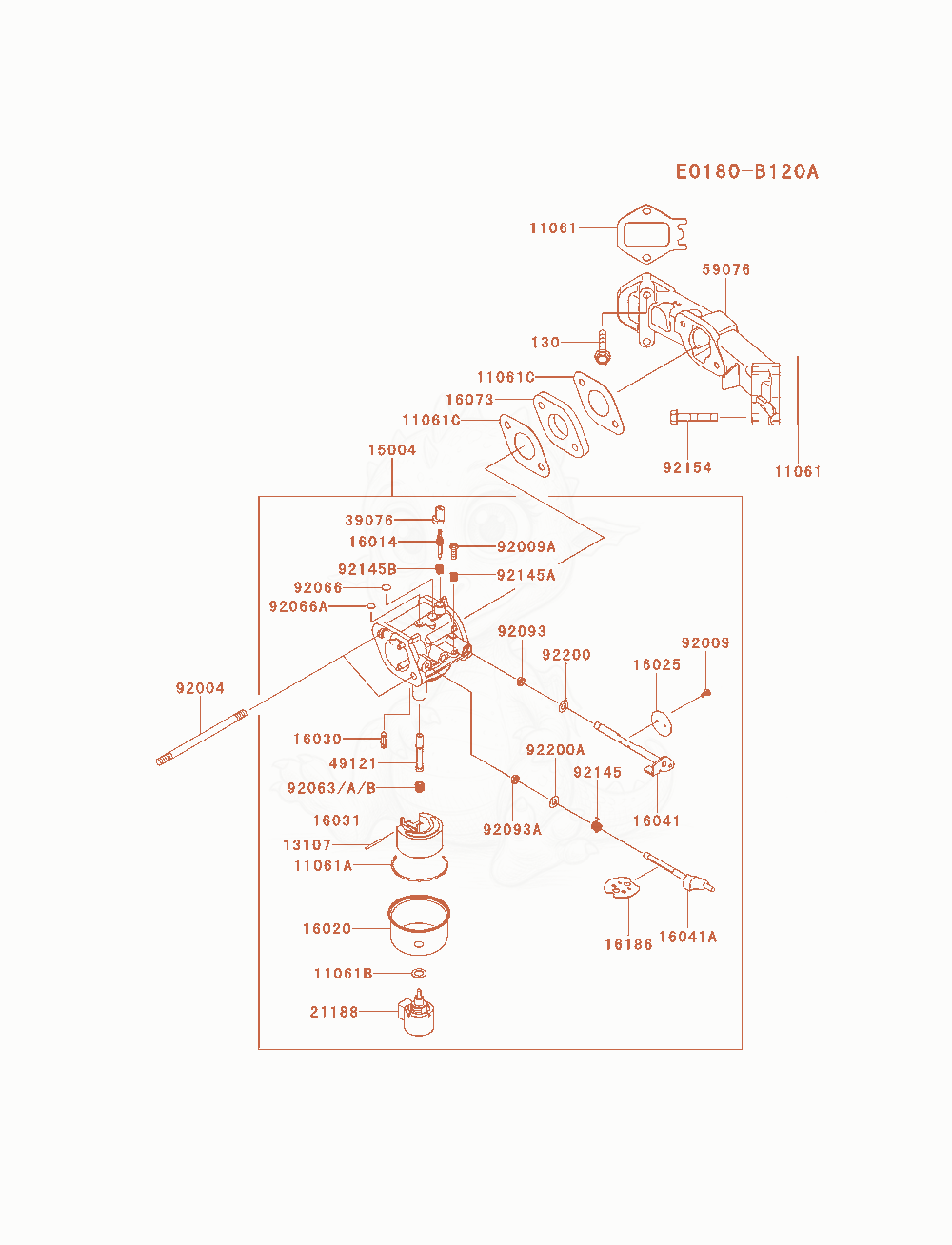

FS481V-AS30 Carburetor Diagram
- BOLT-FLANGED,6X35×2
- GASKET,MANIFOLD×2
- GASKET,CHAMBER×1
- GASKET,SCREWReplaced by 11061-1573×1
- GASKET,INSULATOR×2
- SHAFT×1
- 1500415004-0822Not stockedCARBURETOR-ASSY×1
- 1601416014-7011Not stockedSCREW-PILOT AIR×1
- 1602016020-7003Not stockedCHAMBER-FLOAT×1
- 1602516025-7006Not stockedVALVE-THROTTLE×1
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,THROTTLE×1
- SHAFT-CARBURETOR,CHOKE×1
- INSULATORReplaced by 16073-0876×1
- VALVE-ASSY-CHOKE×1
- SOLENOID×1
- LIMITER×1
- NOZZLE-MAIN×1
- MANIFOLD-INTAKE×1
- STUD,6X98×2
- SCREW×2
- SCREW×1
- JET-MAIN,#100,3280FT×1
- JET-MAIN,#098,6560FT×1
- JET-MAIN,#102×1
- PLUG×1
- PLUG×1
- SEAL×1
- SEAL×1
- SPRING×1
- SPRING×1
- SPRING×1
- BOLT,6X37×2
- WASHER×1
- WASHER,9.8X5.5X1.0×1
