FS481V-AS30 4 Stroke Engine FS481V

FS481V-AS30 Starter Diagram

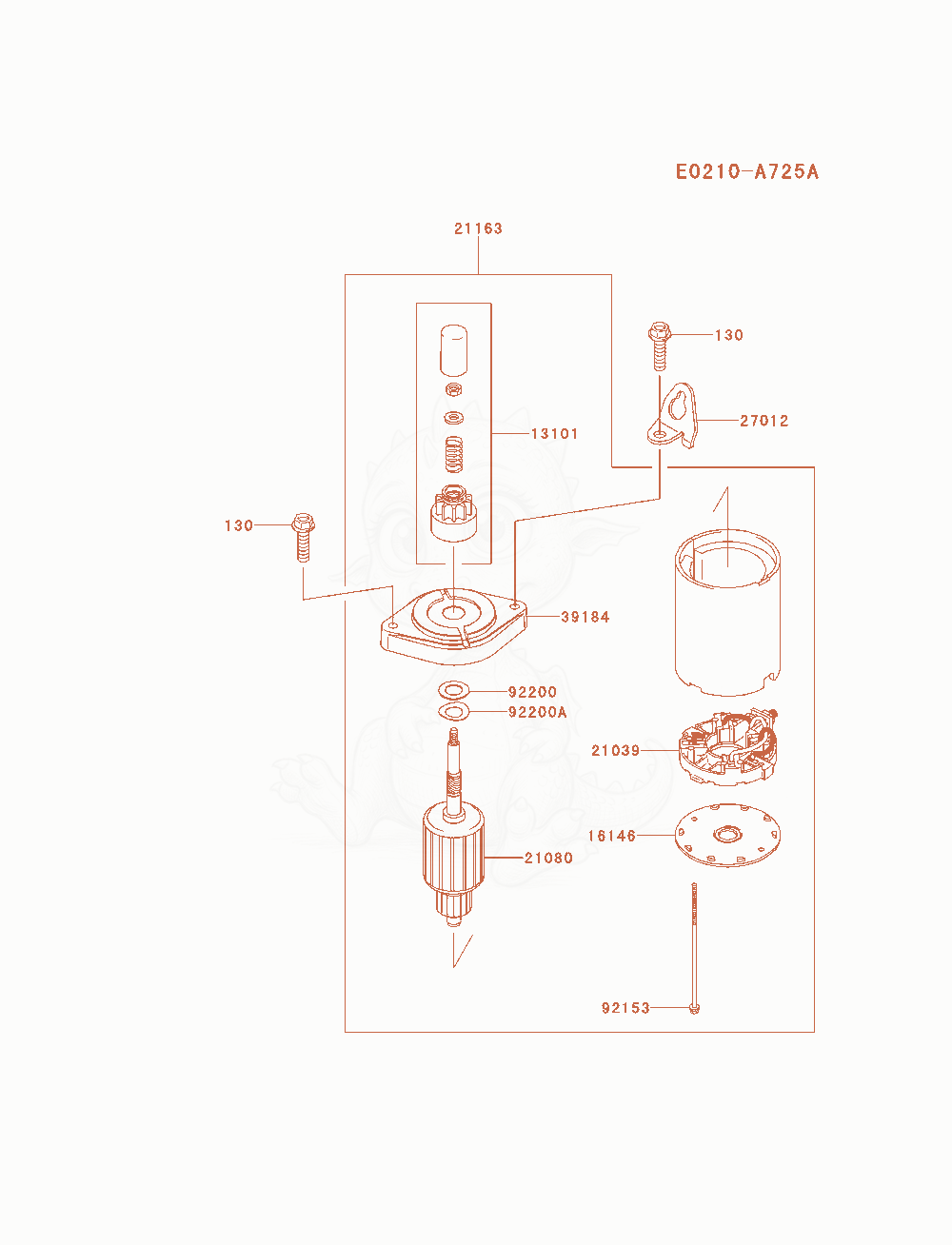

Exploded parts diagram of the Starter of a Kawasaki FS481V-AS30 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

130130BA0830
$3.32
BOLT-FLANGED,8X30×2
1310113101-0650
$231.74
GEAR-ASSYReplaced by 21163-0791×1
1614616146-7013
$9.51
COVER-ASSY×1
2103921039-7002
$65.64
BRUSH×1
2108021080-0009
$224.07
ARMATURE×1
2116321163-0749
$202.61
STARTER-ELECTRICReplaced by 21163-0791×1
2701227012-7008
$1.34
HOOK×1
3918439184-0019
$110.88
BRACKET-ASSY×1
9215392153-7034
$3.88
BOLT×2
9220092200-7023
$2.80
WASHER×1
92200A92200-7024
$2.80
WASHER×1
