FS481V-AS30 4 Stroke Engine FS481V

FS481V-AS30 Piston / Crankshaft Diagram

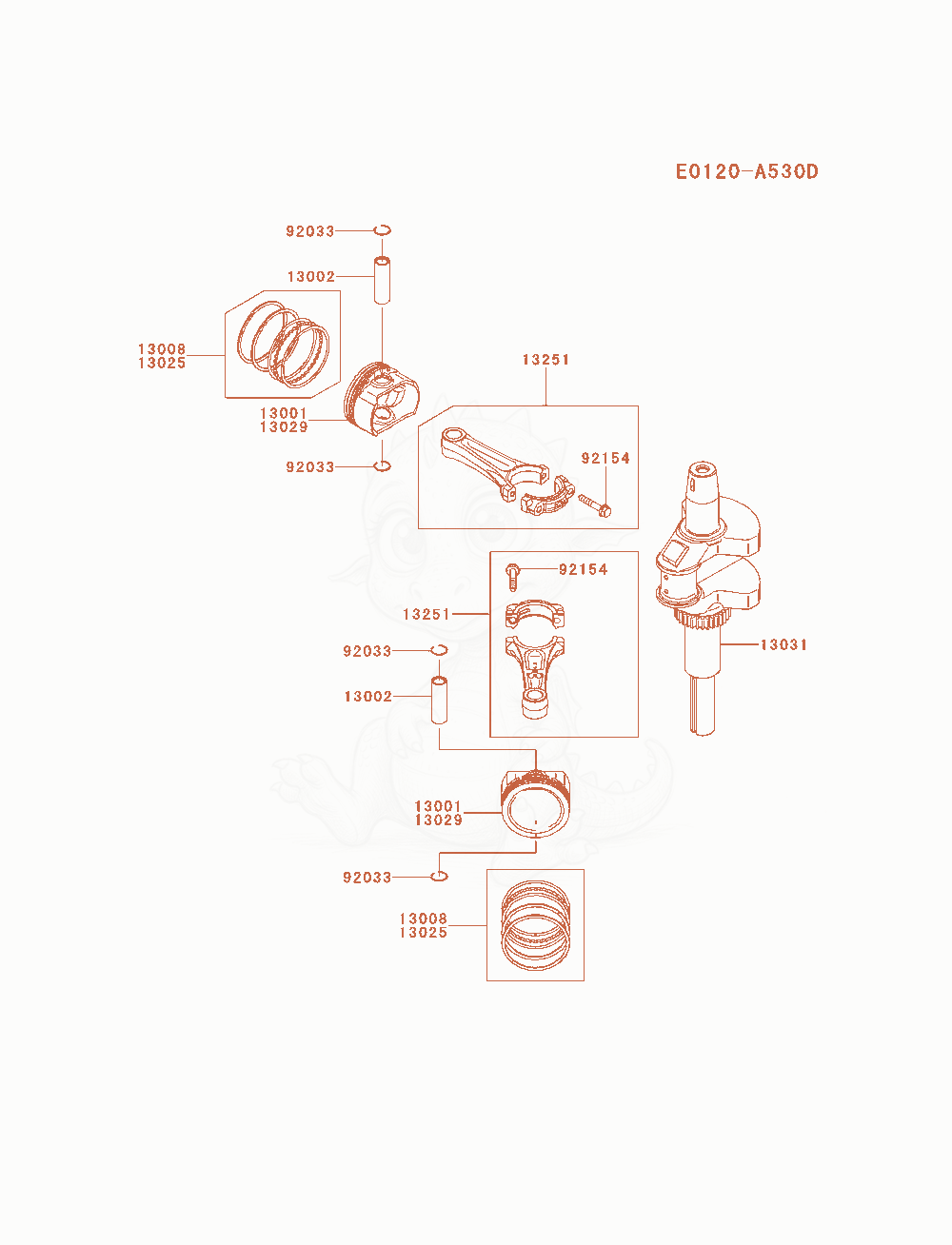

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FS481V-AS30 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7031
    $54.22
    PISTON-ENGINE×2
  • 1300213002-7001
    $4.18
    PIN-PISTON×2
  • 1300813008-7006
    $24.74
    RING-SET-PISTONReplaced by 13008-0611×2
  • 1302513025-7010Not stocked
    RING-SET-PISTON L,0.50×AR
  • 1302913029-7011
    $52.68
    PISTON-ENGINE L,0.50×AR
  • 1303113031-0814
    $224.24
    CRANKSHAFT-COMP×1
  • 1325113251-0718
    $45.95
    ROD-ASSY-CONNECTINGReplaced by 13251-0741×2
  • 9203392033-0725Not stocked
    RING-SNAP×4
  • 9215492154-2842
    $1.27
    BOLT,6X35×4
