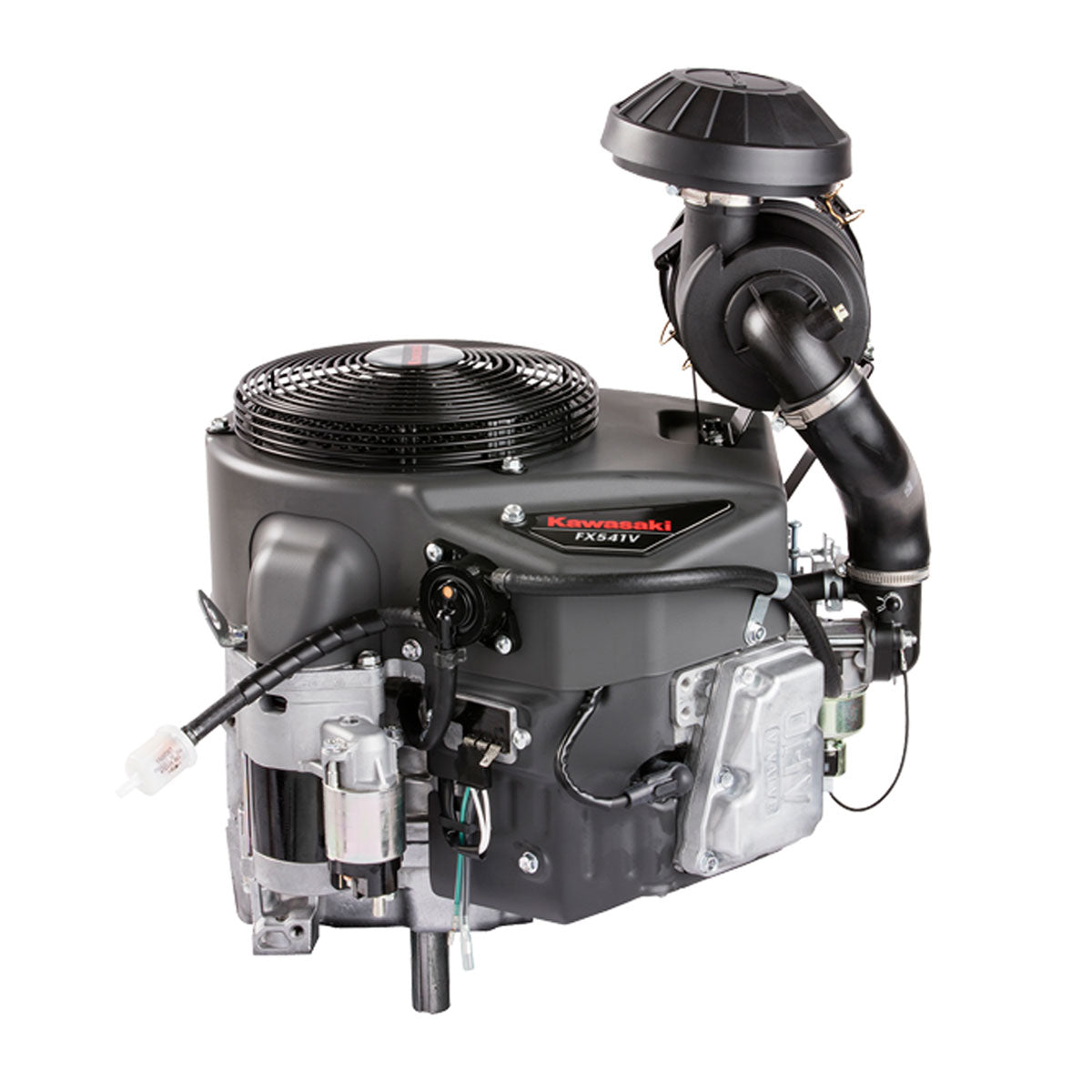

Kawasaki FX541V-DS06S 16.5HP W/OIL SIDE MFL
Vendor: Kawasaki

Kawasaki FX541V-DS06S 16.5HP W/OIL SIDE MFL

$1,864.36 $2,060.60 Save 9%

Share

  •
  •

Description

Presenting the FX541V-DS06-S Genuine Kawasaki Vertical Engine - Delivering 16.5 HP:

The FX541V engine is meticulously designed to empower your machinery with the strength of Kawasaki.

This forced air-cooled V-twin engine features an internally vented carburetor equipped with a fuel shut-off solenoid. All FX engines are recognized as Critical Power SAE-Certified, compact, 90-degree V-twin engines. Each engine boasts hemispherical combustion chambers and advanced overhead V-valve technology, ensuring minimal emissions, robust power output, and smooth operation.

Specifications:

  • PTO Size: 1-1/8" x 4-9/32"
  • Equipped with a Recoil Starter
  • Features a Clutch Coil
  • With Oil Filter Side MFLR (Muffler)
  • Includes a Heavy-Duty Canister Air Filter
  • Boasts an Overhead V-Valve Design
  • 90° V-Twin Configuration
  • Utilizes a Pressurized Lubrication System
  • Deploys Electronic Spark Ignition
  • Incorporates Automatic Compression Release
  • Equipped with an Internally Vented Carburetor
  • Features a Rotating Grass Chopper Screen
  • Utilizes a Multi-Stage Canister Air Filter
  • Incorporates Cast-Iron Cylinder Liners
  • Comes with a Metal Engine Cover featuring Integrated Cleanout Ports
  • Equipped with a Heavy-Duty Shift-Type Starter
  • Displacement: 603 cc (36.8 cu. in.)
  • Number of Cylinders: 2
  • Bore x Stroke: 2.9 x 2.8 in. (73 x 72mm)
  • Compression Ratio: 8.1:1
  • Oil Capacity with Filter: 1.8 U.S. qt (1.7 liters)
  • Maximum Power Output: 16.5 hp (12.3 kW) at 3,600 RPM
  • Maximum Torque: 32.1 ft-lbs (43.4 N·m) at 2,000 RPM
  • Dry Weight: 89.7 lbs (40.7 kgs)

The FX541V-DS06-S is engineered to provide precise and reliable performance, making it an excellent choice for various applications that demand both power and dependability.
