Kawasaki FX481V-ES01S 481CC R/S STD
Vendor: Kawasaki

Kawasaki FX481V-ES01S 481CC R/S STD

$1,560.72 $1,725.00 Save 9%
In Stock

Pickup available , Usually ready in 24 hours

Description

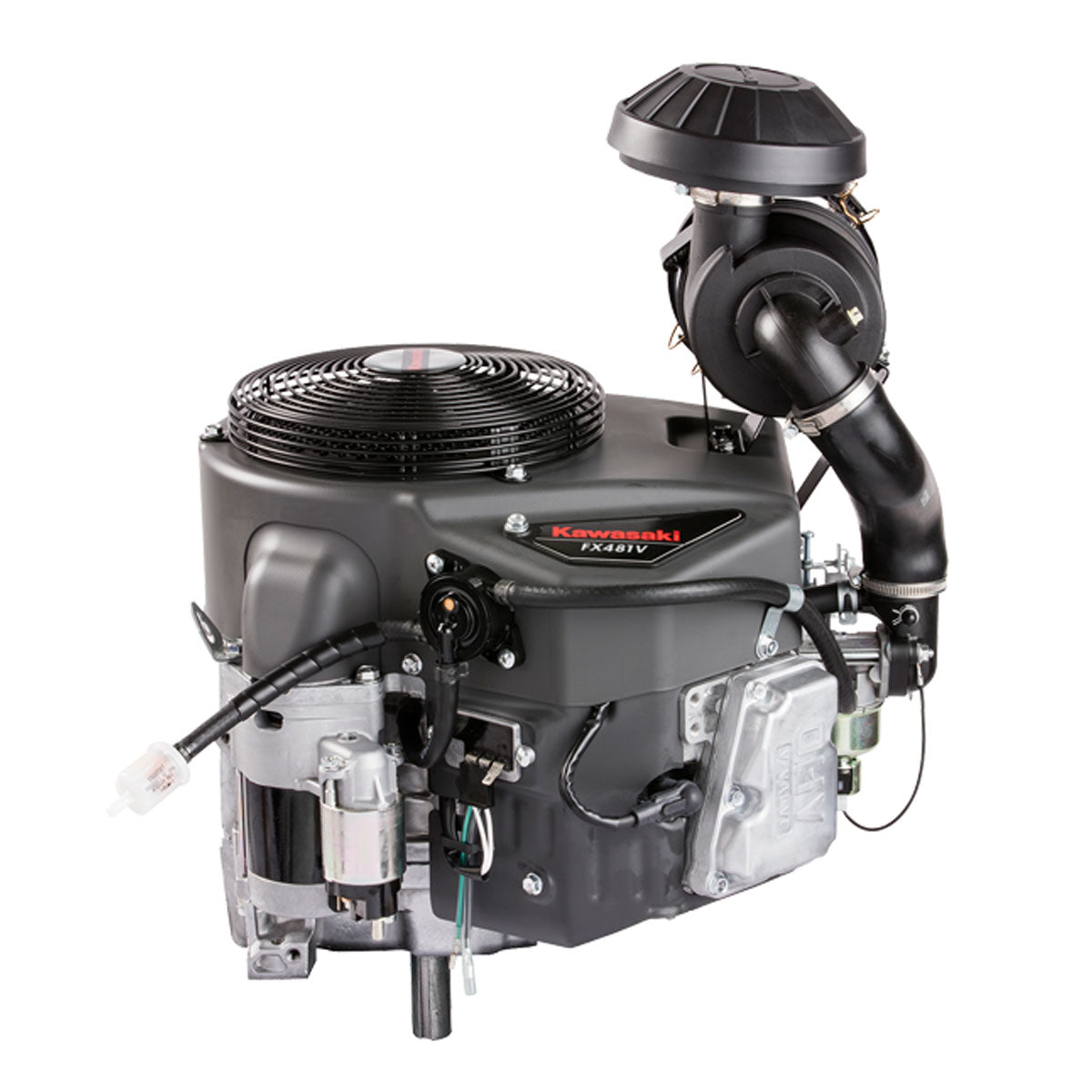

Introducing the FX481V-ES01-S Genuine Kawasaki Vertical Engine - Delivering 15.5 HP:

The FX481V 15.5 hp engine is a testament to quality power that consistently performs day after day.

With a sturdy metal engine cover and a heavy-duty shift-type starter, this V-twin 4-cycle engine ensures reliable and consistent performance. All FX engines are recognized as Critical Power SAE-Certified, compact, 90-degree V-twin engines. Each engine features hemispherical combustion chambers and advanced overhead V-valve technology, guaranteeing minimal emissions, robust power output, and smooth operation.

Specifications:

  • PTO Size: 1" x 3-5/32"
  • Equipped with a Recoil Starter
  • Features a Clutch Coil
  • Without Muffler
  • Includes a Heavy-Duty Canister Air Filter
  • Boasts an Overhead V-Valve Design
  • Integrated Cleanout Ports
  • 90º V-Twin Configuration
  • Utilizes a Pressurized Lubrication System
  • Deploys Electronic Spark Ignition
  • Incorporates Automatic Compression Release
  • Equipped with an Internally Vented Carburetor
  • Features a Rotating Grass Chopper Screen
  • Utilizes a Dual-Element Air Filtration System with a Reinforced Primary Filter
  • Incorporates Cast-Iron Cylinder Liners
  • Displacement: 603 cc (36.8 cu. in.)
  • Number of Cylinders: 2
  • Bore x Stroke: 2.9 x 2.8 in. (73 x 72mm)
  • Compression Ratio: 8.1:1
  • Oil Capacity with Filter: 1.8 U.S. qt (1.7 liters)
  • Maximum Power Output: 15.5 hp (11.6 kW) at 3,600 RPM
  • Maximum Torque: 31.4 ft-lbs (42.6 N·m) at 1,800 RPM
  • Dry Weight: 89.7 lbs (40.7 kgs)

The FX481V-ES01-S is designed to provide consistent and dependable performance, making it an excellent choice for various applications that demand reliability and power.
