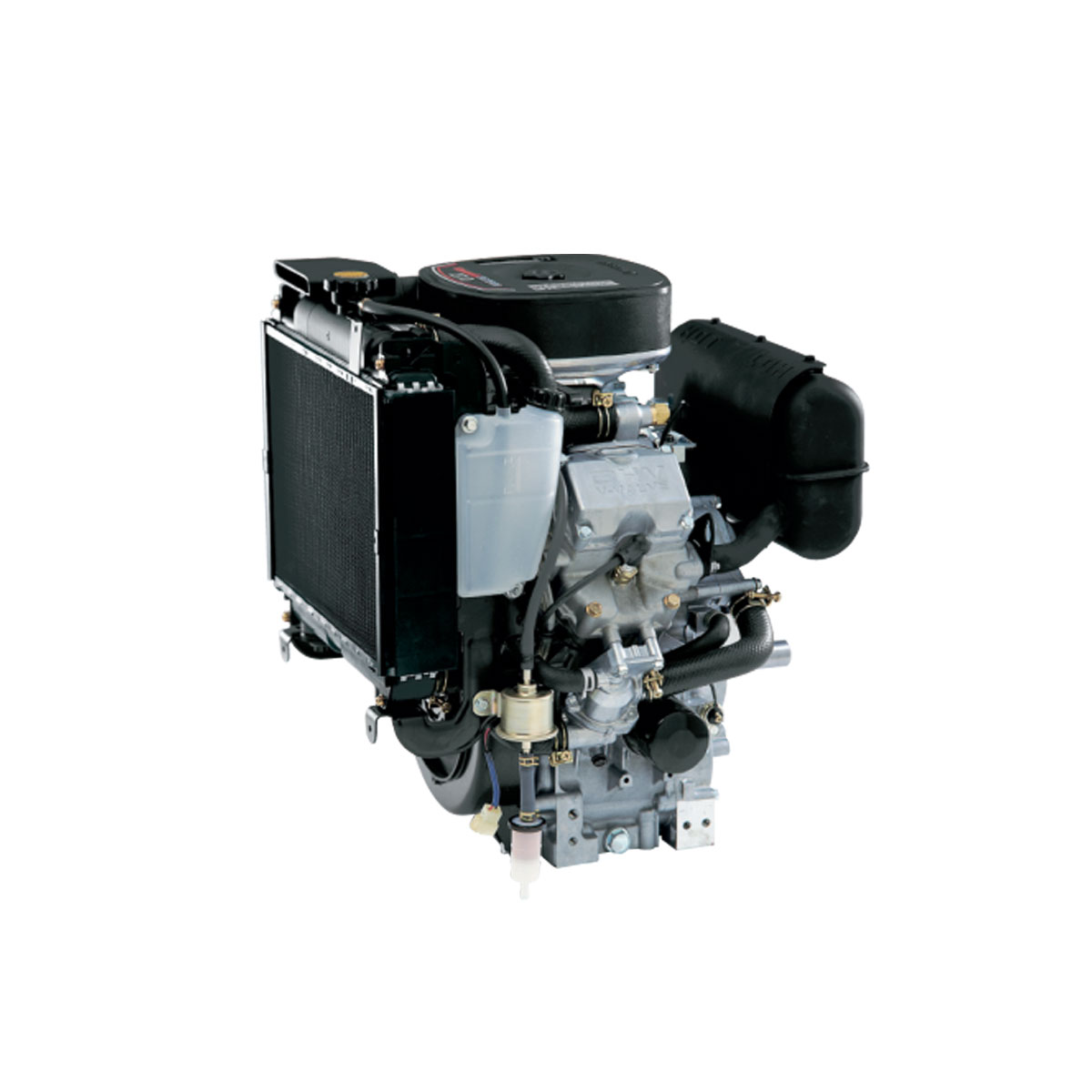

Kawasaki Horizontal Engine 25 HP FD750D-NS06-S
Vendor: Kawasaki

Kawasaki Horizontal Engine 25 HP FD750D-NS06-S

$2,855.13 $3,155.67 Save 9%

Share

  •
  •

Description

Introducing the FD750D-NS06-S Genuine Kawasaki Horizontal Engine - Delivering 25 HP:

The FD750D is a robust 4-cycle gas engine designed for various applications, including lawn tractors, scissor lifts, trenchers, and trash pumps.

Power is harnessed through a meticulously engineered liquid-cooled horizontal shaft OHV V-twin. Kawasaki FD Series engines are renowned for their lightweight construction and liquid-cooled prowess. Their overhead valve V-twin design excels in confined spaces, making them suitable for zero-turn, stand-on, or front-mount riders, as well as lawn and garden tractors, utility vehicles, generators, and pumps.

Specifications:

  • PTO Size: 1-1/8" x 3-15/16"
  • Horizontal PTO Configuration
  • Equipped with a Shift-Type Starter
  • Features a 20 AMP Coil
  • Horizontal Muffler with an Outlet on the Side
  • Regulator Installed
  • Equipped with a Heavy-Duty Canister Air Filter
  • Boasts an Overhead V-Valve Design
  • Liquid-Cooled
  • 90° V-Twin Configuration
  • Utilizes Magneto Spark Ignition
  • Features a Multi-Position, Dual-Element Air Cleaner
  • Equipped with a Twin Barrel Carburetor with Fuel Shut-off Solenoid
  • Includes an Oil Pressure Switch
  • Displacement: 745 cc (45.5 cu. in.)
  • Number of Cylinders: 2
  • Bore x Stroke: 3.07 x 3.07 in. (78 x 78mm)
  • Compression Ratio: 8.6:1
  • Oil Capacity with Filter: 2.1 U.S. qt (2.0 liters)
  • Maximum Power Output: 25.0 hp (18.7 kW) at 3,600 RPM
  • Maximum Torque: 41.0 ft-lbs (55.6 N·m) at 2,600 RPM
  • Dry Weight (without muffler): 122.0 lbs (55.3 kg)

The FD750D-NS06-S is designed to provide dependable power for your equipment needs, ensuring reliable performance in a wide range of applications.
