FJ180V-DM00 4 Stroke Engine FJ180V

FJ180V-DM00 Brake / Cover Diagram

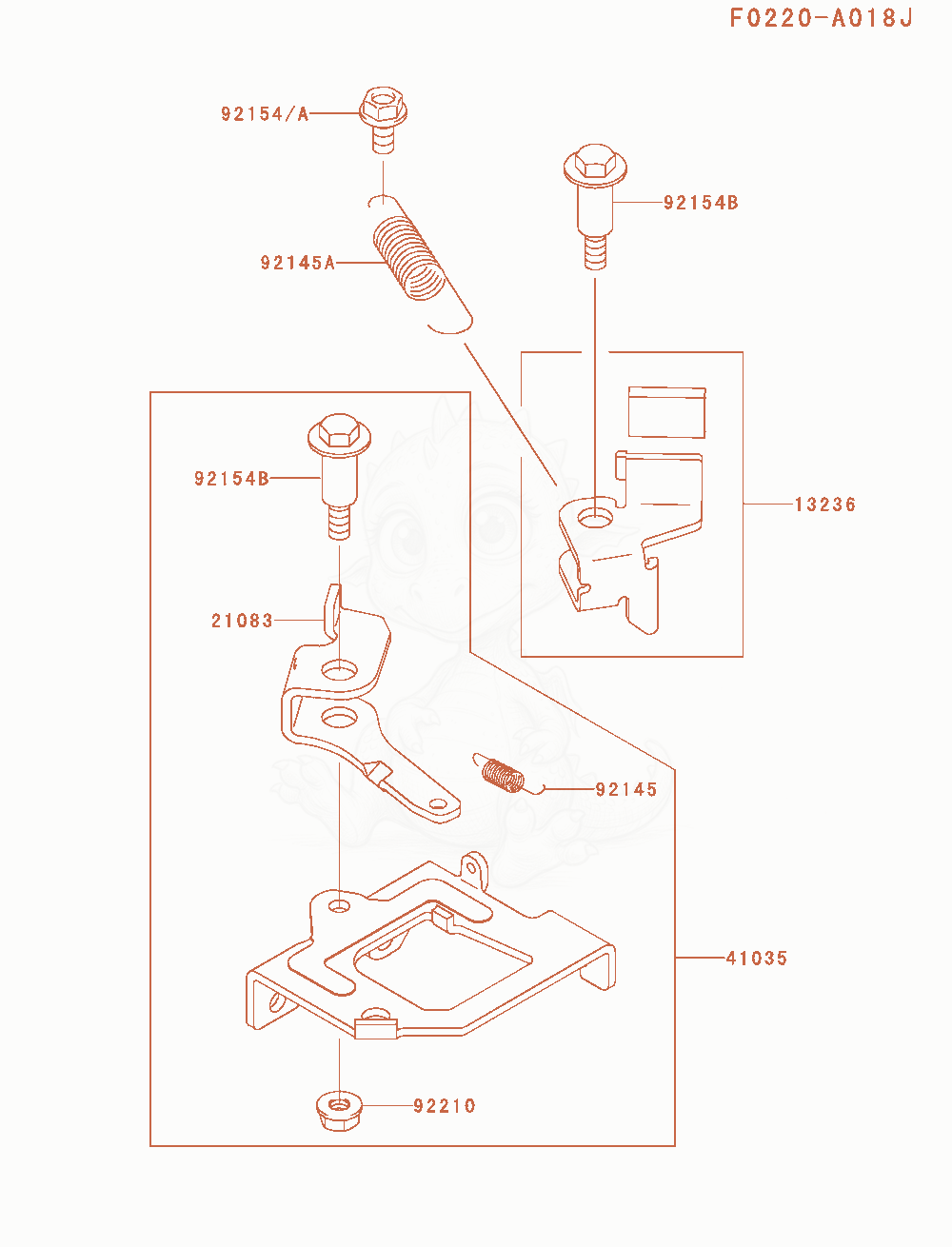

Exploded parts diagram of the Brake / Cover of a Kawasaki FJ180V-DM00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1323613236-7008Not stocked
    LEVER-COMP×1
  • 2108321083-7016
    $1.74
    ARM×1
  • 4103541035-0703Not stocked
    PANEL-ASSY-BRAKE×1
  • 9214592145-2180
    $1.29
    SPRING×1
  • 92145A92145-2181Not stocked
    SPRING×1
  • 9215492154-1666
    $0.81
    BOLT,6X12×1
  • 92154B92154-2005
    $3.21
    BOLT,M6×2
  • 9221092210-2121
    $0.39
    NUT,M6×1
