FJ180V-CM11 4 Stroke Engine FJ180V

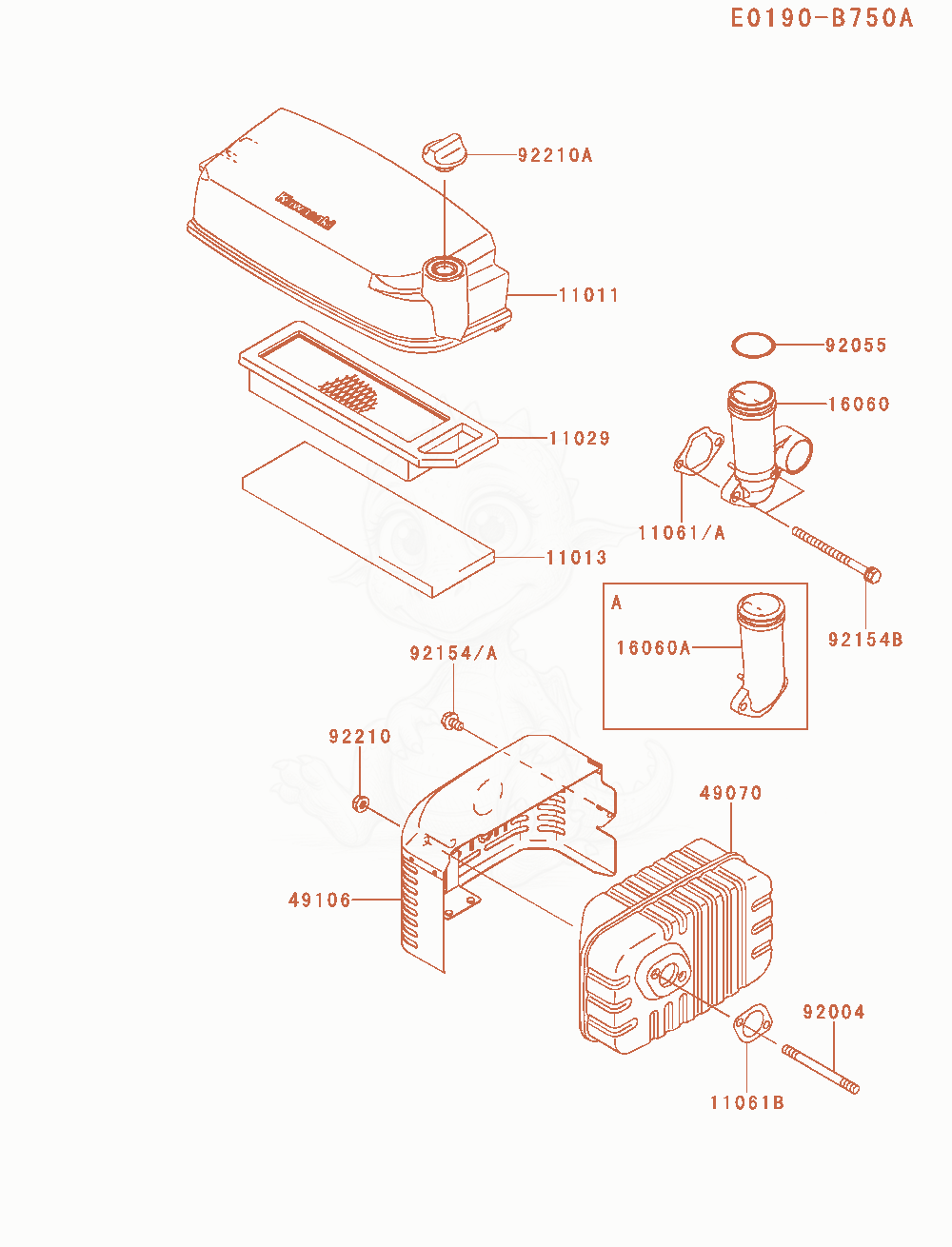

FJ180V-CM11 Air-Filter / Muffler Diagram
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- GASKET,PIPE INTAKE×1
- GASKET,PIPE INTAKE×1
- GASKET,MUFFLER×1
- PIPE-INTAKE×1
- MUFFLER-COMP×1
- COVER-MUFFLER×1
- STUD,6X80×2
- RING-O,31.7MM×1
- BOLT,6X12×1
- 92154A92154-2004Not stockedBOLT,6X10×1
- BOLT,6X80×2
- NUT,M6×2
- NUT,CASE-A/F×1
