FH580V-ES20 4 Stroke Engine FH580V

FH580V-ES20 Starter(Fh580-B86001-) Diagram

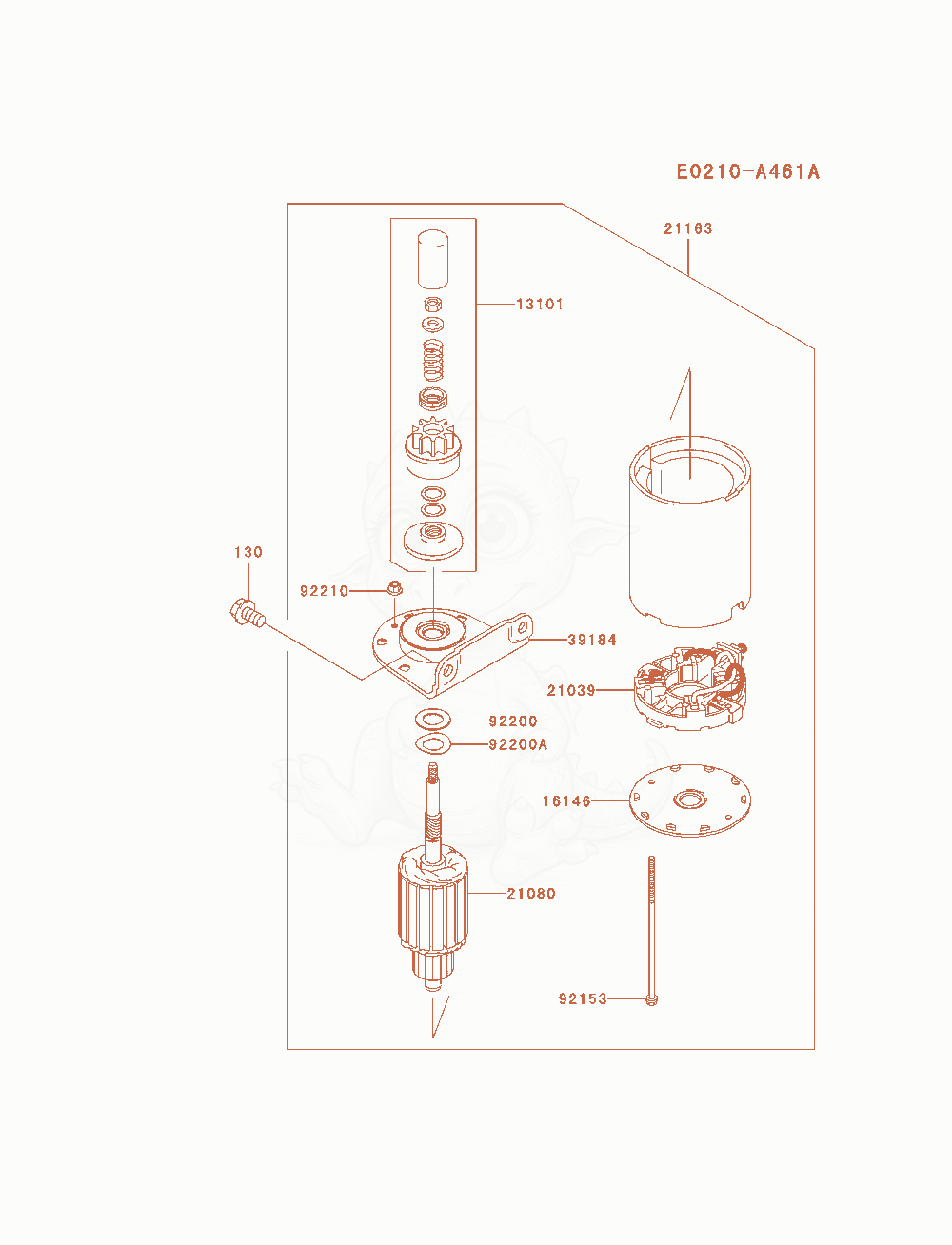

Exploded parts diagram of the Starter(Fh580-B86001-) of a Kawasaki FH580V-ES20 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1310113101-7010
$118.85
GEAR-ASSY×1
1614616146-7013
$9.51
COVER-ASSY×1
2103921039-7002
$65.64
BRUSH×1
2108021080-7007
$215.71
ARMATURE×1
2116321163-7031
$249.51
STARTER-ELECTRIC×1
3918439184-7009
$36.53
BRACKET-ASSY×1
9215392153-7034
$3.88
BOLT×2
9220092200-7023
$2.80
WASHER×1
92200A92200-7024
$2.80
WASHER×1
9221092210-7037
$1.64
NUT×2
130130AA0814Not stocked
BOLT-FLANGED,8X14×2
